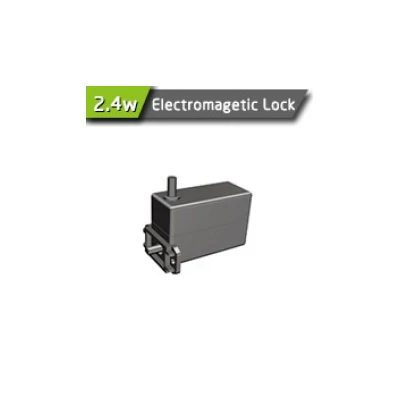

Type2 Electromagnetic Lock

Product Application
Prevent charging plug release accidentally

Features
● Low power long power supply mode, low heating temperature
● Small size, suitable for small space installation
● Power blackout unlocked automatically
● Non-detachable shell protection, protection grade IP55

Electrical Performance
● Model: BS-EL-003
● Reted current: 0.2A
● Working voltage: 12V DC
● Power: 2.4w
● Withstand voltage: 500V
● Working cycle: ON:1Sec / OFF:10Sec
● Insulation class: B
● Working temperature: -30°C ~+ 50°C
● CE, TUV approved

Mechanical Properties
● Mechanical life: operating cycle > 20000 times

Standard Wiring
● Cable specification: TUV 4*0.25mm2
● Cable length: 600mm
● Cable diameter: 4mm
● Cable colorr: Black

Materials
● Housing material: thermoplastic, flammability class UL94 HB
