Type2 Female Socket
| Shipping fee: | € 10.16 |
| Average Rating: | Not Rated |
| Availability: | Out of stock, inquire! |
|
|
|
Description

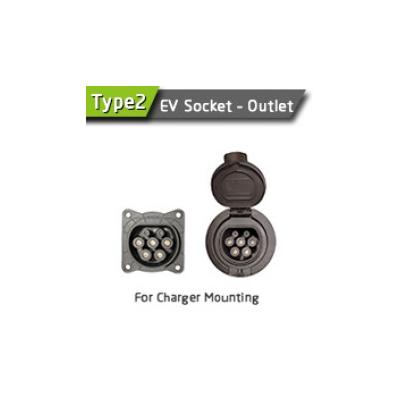

Type 2 (IEC 62196-2) Socket-Outlet (Charging Station End) 4 Point Fixing for Electric Vehicle Charging
● Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
● Nice shape and easy to use, protection class IP54 (in mated conditions)
Parameters
● Model: BS-EVSC003
● 4 Point Fixing
● Reted current: 16A/32A/63A
● Working voltage: 240V AC
● Insulation resistance: > 1000M Ω
● Terminal temperature rise: <50K
● Withstand voltage: 2000V
● Contact impedance: 0.5m Ω Max
● Vibration resistance: Meet JDQ 53.3 requirements
● Working temperature: -30°C ~+ 50°C
● Hinged Lid
● CE, TUV approved
Materials
● Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
● Contact Pin: Copper alloy, silver or nickel plating
● Sealing gasket: rubber or silicon rubber
Charging Cable Spec
● 16A: 3*2.5mm2+2*0.5mm2
32A: 3*6.0mm2+2*0.5mm2
63A: 3*10mm2+2*0.5mm2
● Certificates: TUV or UL
