Description

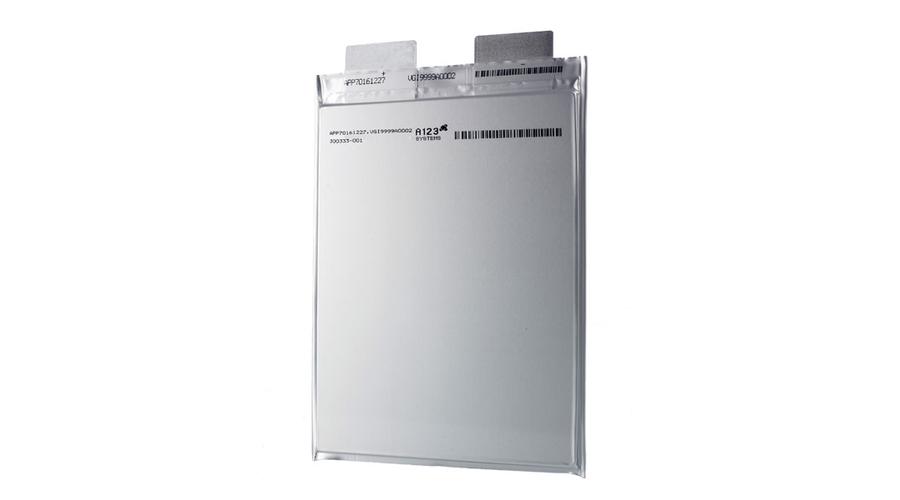

AMP20 Lithium Ion Prismatic Cell
Nanophosphate® AMP20M1HD-A: A123's AMP20 prismatic pouch cell is built to deliver high energy and power density combined. The AMP20 prismatic cell demonstrates industry-leading abuse tolerance coupled with excellent life performance under the most rigorous duty cycles. The AMP20 delivers high usable energy over a wide state of charge (SOC) range to minimize pack oversizing and offer very low cost per watt-hour.
Prismatic Cell Primary Applications:
Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
Passenger and commercial battery electric vehicles (BEVs)
Mild and micro hybrid vehicles
Long-Duration (LD) grid energy storage systems
Prismatic Cell Benefits:
Power: Over 2,400 W/kg and 4,500 W/L
Safety: Excellent abuse tolerance and environmentally friendly
Life: Excellent calendar and cycle life
Prismatic Cell Specifications:
Nominal voltage: 3.3V
Nominal capacity: 20Ah
| Ah | 20Ah |
| Prismatic Cell Specifications | |
| Cell Dimensions (mm) | 7.25 x 160 x 227 |
| Cell Weight (g) | 496 |
| Cell Capacity (minimum, Ah) | 19.5 |
| Energy Content (nominal, Wh) | 65 |
| Discharge Power (nominal, W) | 1200 |
| Voltage (nominal, V) | 3.3 |
| Power (nominal, W/kg) | 2400 |
| Energy (nominal, Wh/kg) | 131 |
| Energy Density (nominal, Wh/L) | 247 |
| Operating Temperature | -30°C to 55°C |
| Storage Temperature | -40°C to 60°C |
| UNDOT 38.3 Certified (certificate available upon request) |
